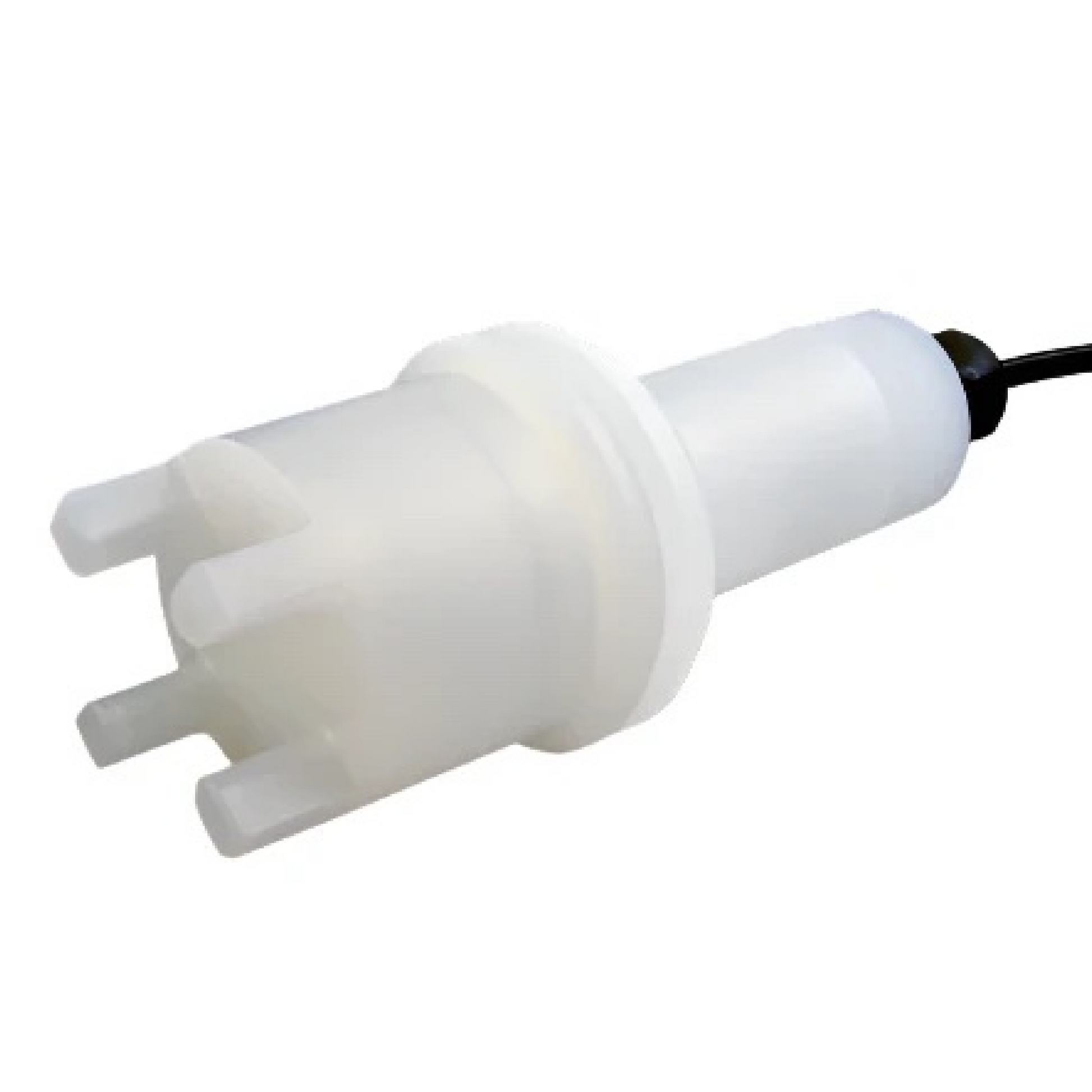

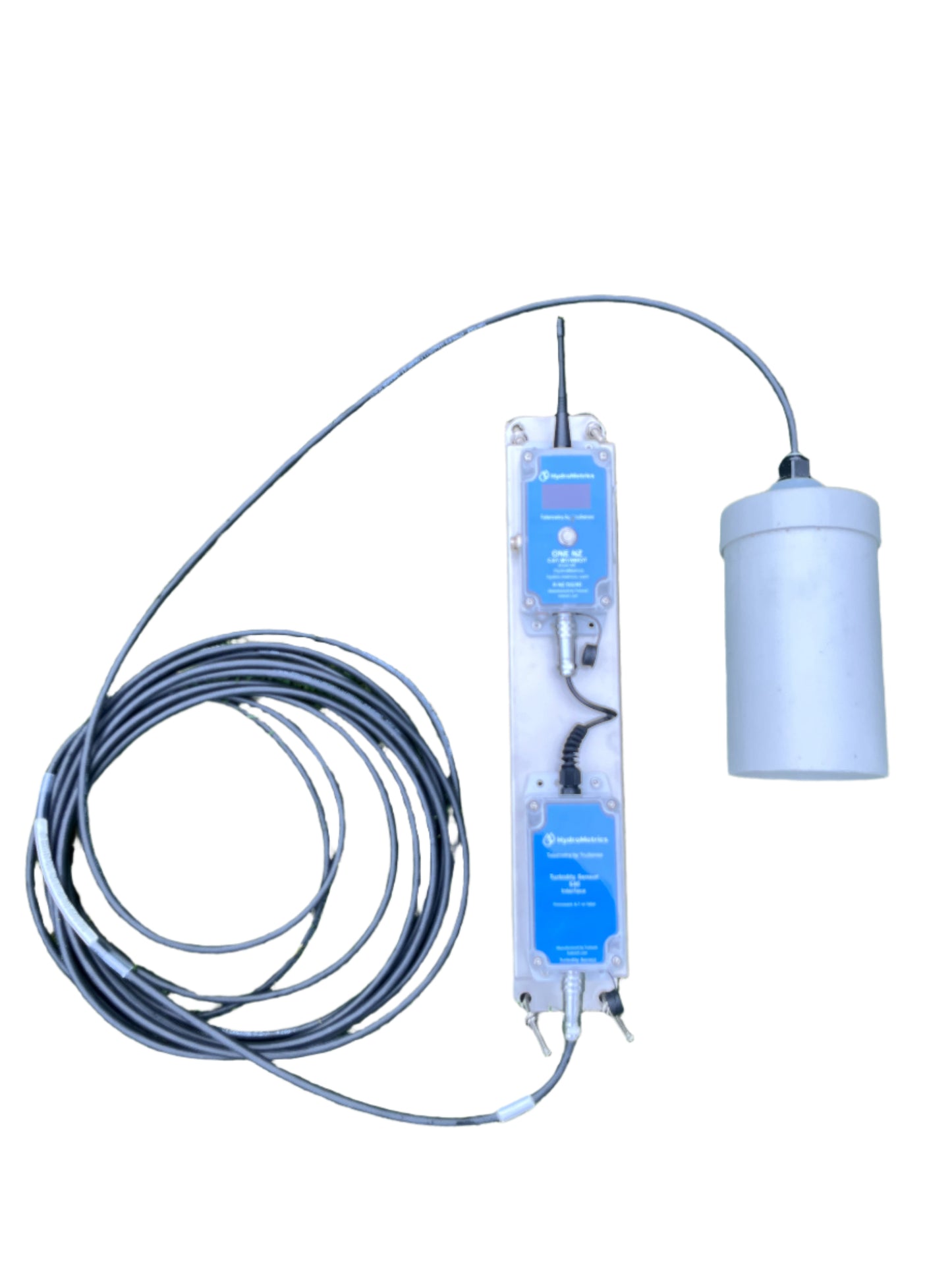

Total Suspended Solids / Turbidity Sensor with HydroMetrics IoT Telemetry

Get real-time, accurate, and reliable water quality monitoring with this low power use, optical TSS Sensor.

Designed for enhanced precision and durability, this optical four-beam self-compensating sensor virtually eliminates drift caused by contamination or electronic aging — ensuring long-term stability and performance.

Why this TSS Sensor?

1. Unmatched Accuracy – Delivers repeatable, high-precision readings via 4-beams for effective monitoring.
2. Easy to Use & Install – Simple 2-point calibration via USB and a simple interface.
3. Reliable Remote Monitoring – Compatible with 4-20mA, Modbus RS485, and SDI-12 connections.

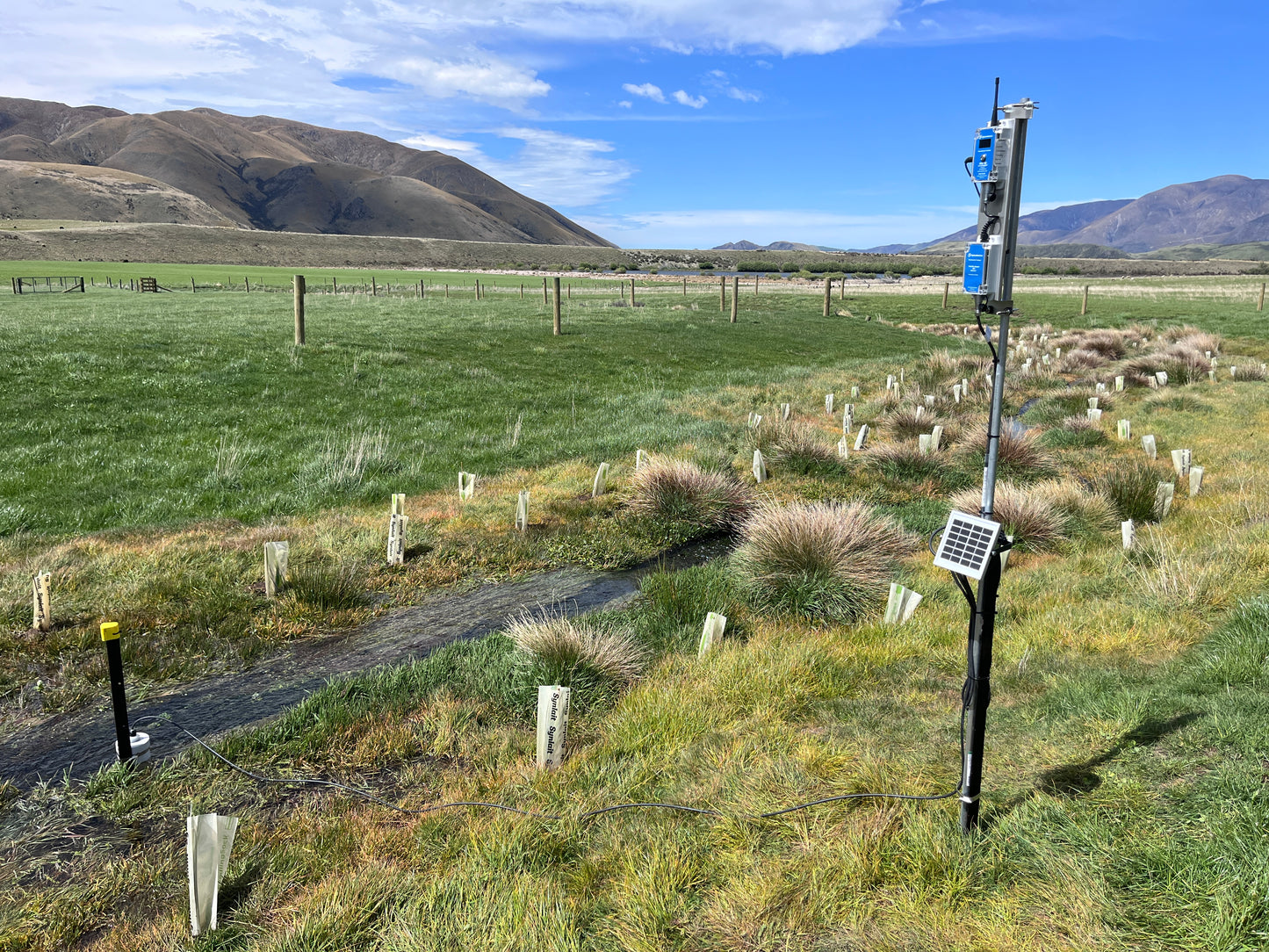

4. Versatile Applications – Ideal for stormwater monitoring, flocculant dosing, and wastewater management.
5. Extended Range – Measures 0 - 2.5g/L (contact us for other levels).
6. Low Power: designed for remote installations with only a small PV panel / battery required.

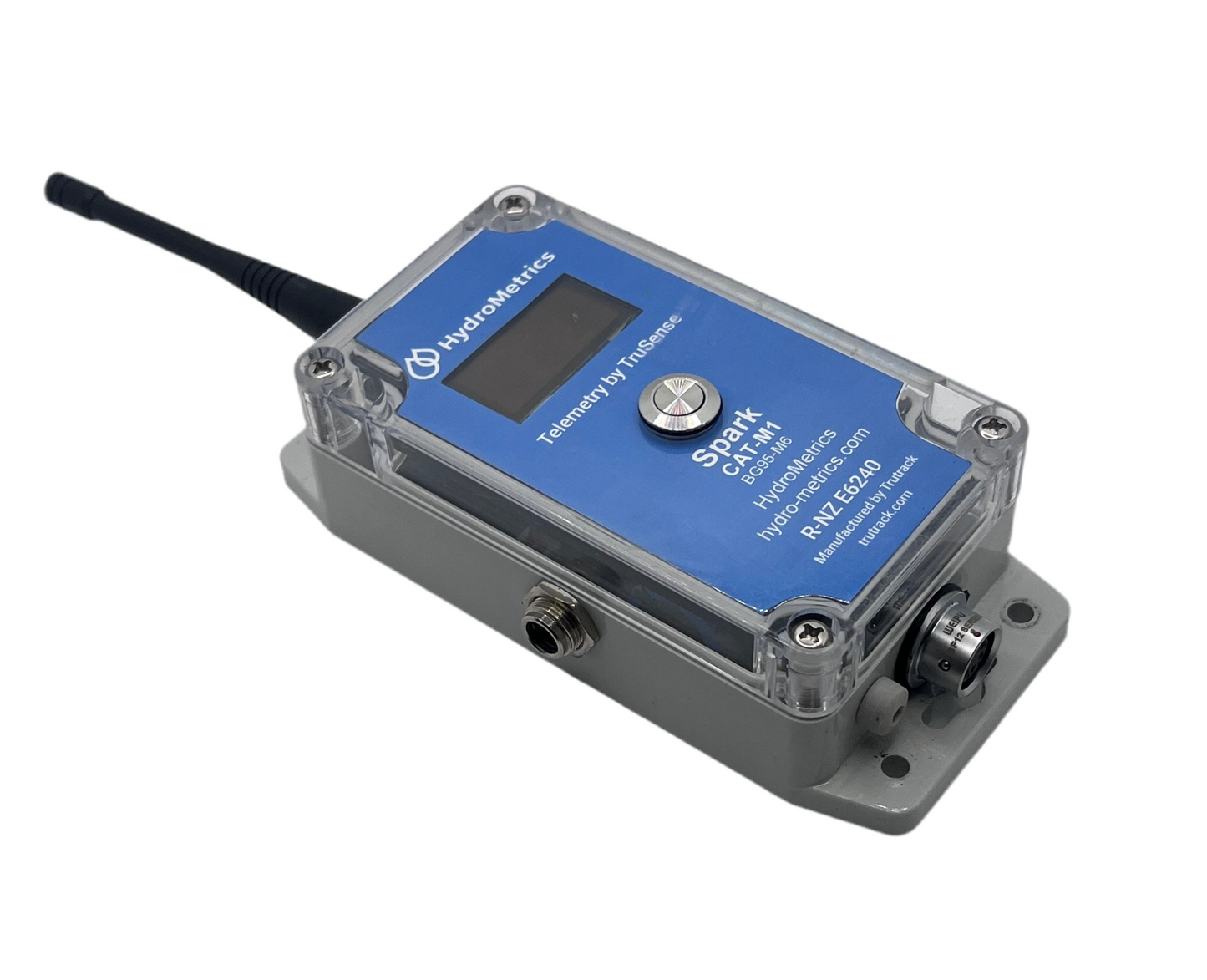

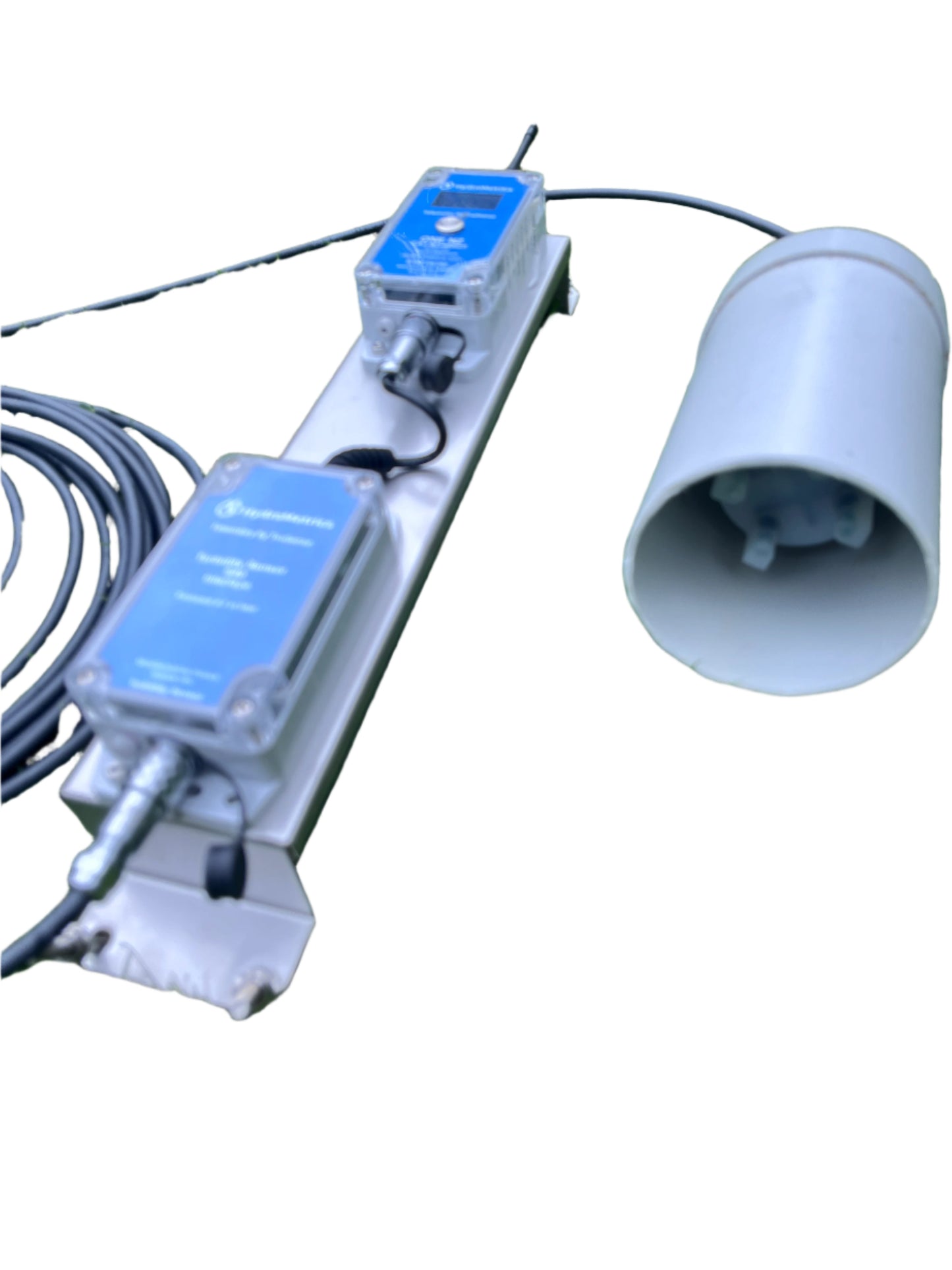

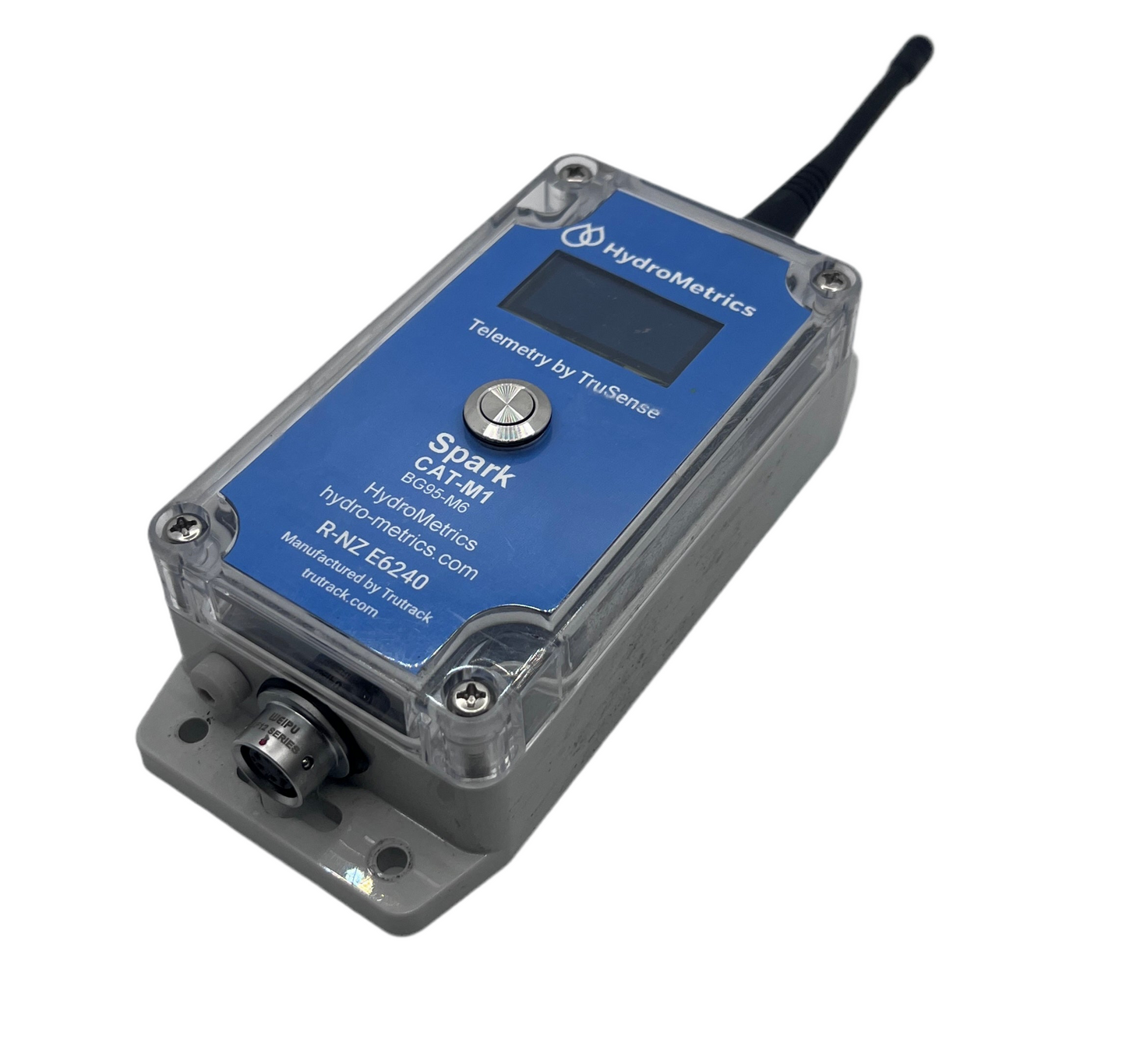

Pair with our HydroMetrics SDI-12 Telemetry for seamless data collection. Band 28 IoT coverage is required — contact us to check availability in your area if you are outside Australia or New Zealand.

Specifications:

• Measuring Range: 0 to 2.5 g/L (the measuring range will vary according to media and particle characteristics)
• Accuracy: +/- 2% of reading
• Repeatability: +/- 1% of reading
• Temperature: 0 to 50°C operating range
• Pressure: 5 Bar
• Cable:
  • Polyurethane covered 10m cable rated to 95°C.
  • Extension cables can be supplied to extend the cable up to 100m.
• Outputs:
  • Modbus RS485, 4-20mA and 1 x solid state relay or
  • SDI-12 only
• Power Requirement:
  • Modbus only - 0.25W at 3.7V 4-20mA and Modbus - 9 to 32V DC.
  • SDI-12 - 0.1W (working), 0.002W (asleep) at 3.7 to 32V DC
• Optical Wave Length: 880nm
• Body Material: Polypropylene,
• Cable: Supplied with a 10m cable as standard. Other lengths available
• Output: Modbus RS485, or SDI-12
• Optional Extras:

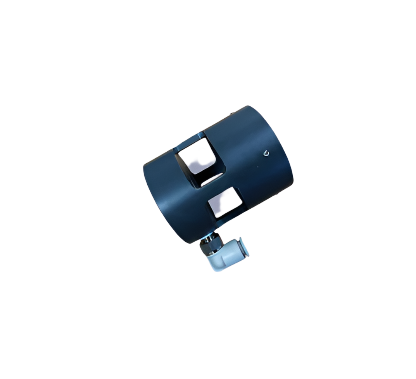

  • Jet attachment - Requires water or airflow.
  • Air to 5 Bar (contact us for details)
• Calibration: Shipped with PC based App and USB Dongle for simple 2 point calibration.
